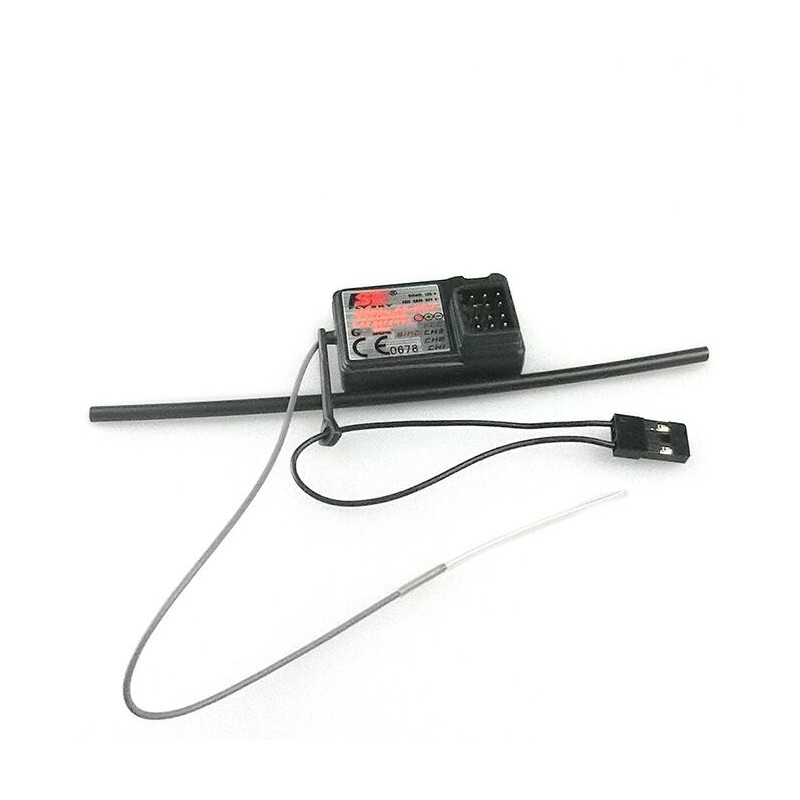

Name：3-Way Receiver FS-GR3E

Package list: 1Pcs/Lot

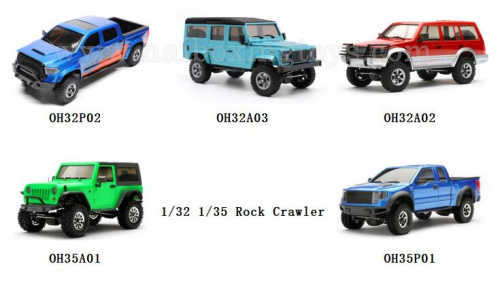

For Orlandoo Hunter 1/32 1/35 Rock Crawler.

Flowserve FS-GR3E Receiver-

Number of channels: 3 channels
High frequency mode: GFSK
 High-frequency modulation: PPM
Frequency: 2.4G
Power: 5V DC (1.5V AAA * 4)
Weight: 8g
Antenna length: 180mm
Size: 35.5 * 22 * ​​13mm
Colour: Black
Certification: CE, FCC, RoHS

-About Link-

Turn off the receiver
2. Plug the receiver cable into receiver ch3, power on the receiver, and the receiver light flashes quickly.
3. Press the bind key on the control (the smallest one above the big wheel) to turn on the control power.
4. The receiver light does not flash, indicating that the receiver is paired
5. Turn off the receiver and unplug the frequency line on ch3
6. Control
7. Turn on the control again, turn on the receiver, and you are ready to use


-About runaway protection-
When the receiver and remote control are powered on, preset the throttle to a signal position.
If you want the receiver to output a neutral signal when it gets out of control, you don't need to touch the throttle.
If you want to set the brake when it is out of control, you can push the trigger forward to the brake position without releasing it.

Use the included tool to press the small hole next to the receiver LED. There is a small button inside it for about 5 seconds.
After the LED flashes, the setting is successful! Then you can release the trigger.

Once set, how can I confirm that runaway protection will work?
It's simpler, just turn off the transmitter and observe whether the signal output by the receiver is the throttle position you set!
